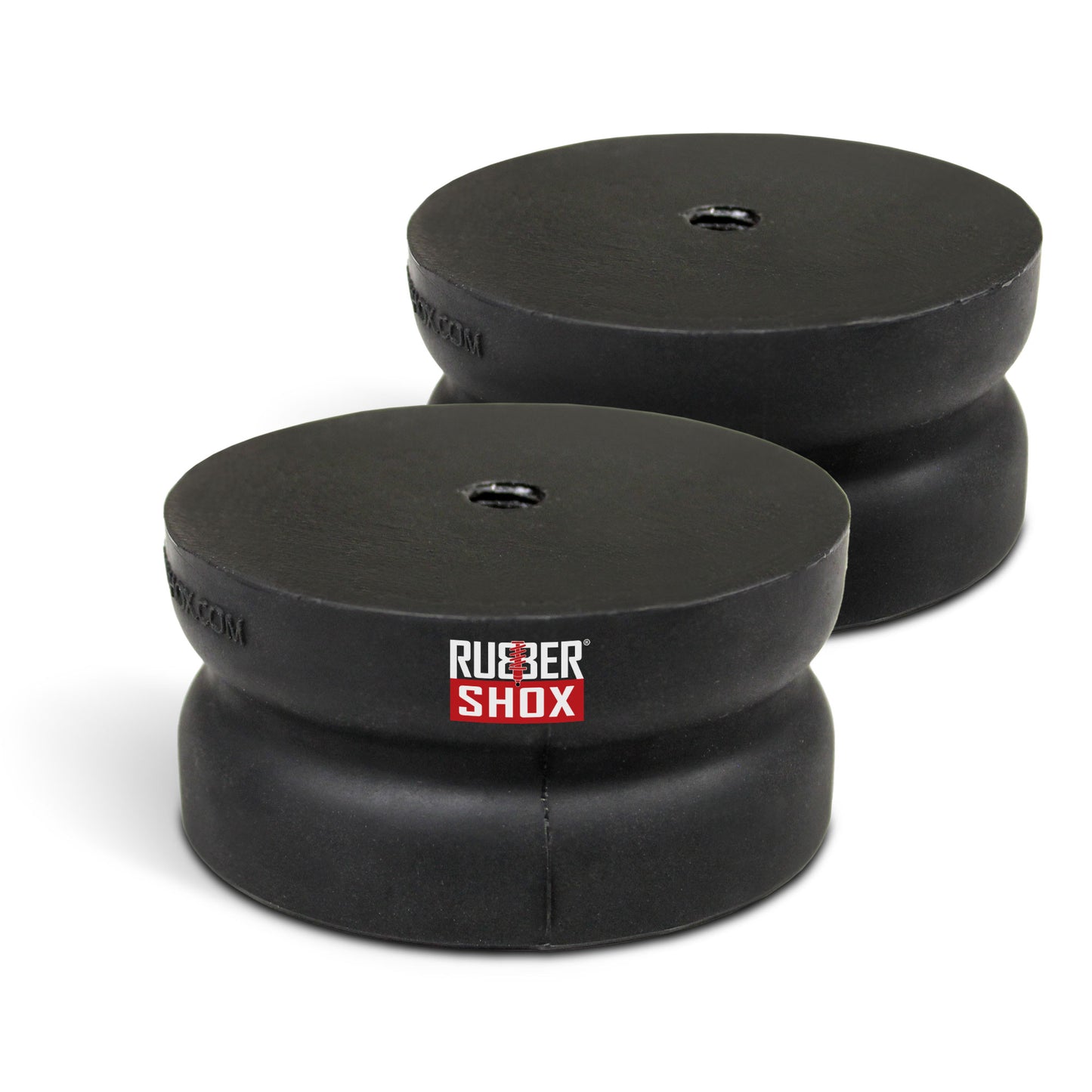

Medium Universal Rubber Bump Stop - Top Modules
Medium Universal Rubber Bump Stop - Top Modules
Model | Module | Interlocking Modular Bump Stops Design | Design to direct replacement for | What's In the Box |

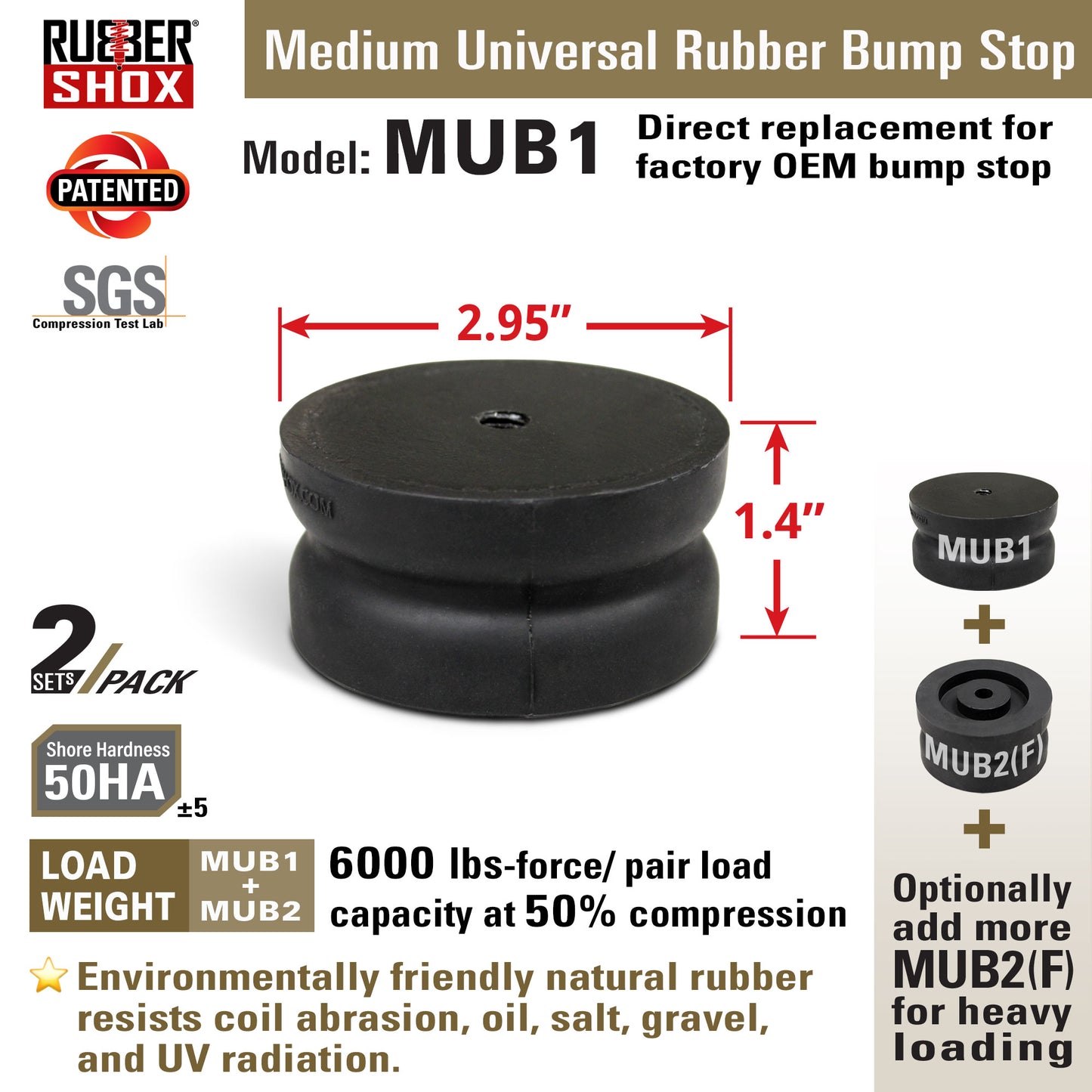

MUB1 | Top Module | Combine Top Module MUB1 with Sub-Module MUB2 and/or MUB2F to your various suspension height | Light Truck and SUV Suspension Enhancement | MUB1 2pcs, 2 Set Screws (10 MM Full Threaded SS Stud Bolt- 60/45/30mm, SS Washer, SS Nylon Insert Jam Nut, MS Nut) |
RubberShox® Modular Universal Rubber Bump Stops. Design your own height per your suspension. It’s a Natural-Rubber Bump Stops for Truck or Recreational Vehicle (RV) Suspension System. An Interlocking Rubber Modular Jounce Bump Stops.
A maintenance-free Nature Rubber suspension support. While soft initial contact and then increase in stiffness linearly. Offer a greater driving stability, heavy loading, off road performance and enhanced ride comfort while extending the operational lifespan of vehicular suspension.
- 1500/3000 lbs.-force pc/pair load capacity at 50% compression.
- RubberShox Modular Universal Medium Rubber Bump Stops for Light Truck and SUV Suspension Enhancement.
- Material: Maintenance-Free & Longevity Durable Natural Rubber is environmentally friendly and resistant to rupture, abrasion, oil, salt, gravel, UV radiation and high temperature.
- Suspension Enhancement: Provides extra support to your vehicle suspension, level your load and maintain vehicle alignment for safer driving with light loading/towing, reduced bounce and sway offroad, and prevent damage to suspension systems.
Downloads
Installation Manuals
- All MUBs Installation Manual
- MUB1 Installation Manual
- MUB1A - Mini Universal Rubber Bump Stop Installation Manual
- MUB1B + MUB1C Installation Manual
- MUB1D Installation Manual
- MUB12-LOAD/MUB12F-OFFROAD Installation Manual
Dimensions Tables
Technical Reports
- Universal Modular Bump Stop Technical Report - All
- Modular Universal Bump Stop Technical Report - MUB12
- Modular Universal Bump Stop Technical Report - MUB122
- Modular Universal Bump Stop Technical Report - MUB1A2
- Modular Universal Bump Stop Technical Report - MUB1B2
- Modular Universal Bump Stop Technical Report - MUB1C2
- Modular Universal Bump Stop Technical Report - MUB1D2
- Modular Universal Bump Stop Technical Report - UB12F3F
- Modular Universal Bump Stop Technical Report - UB1A223A
Others
Case Studies
SKU:MUB1
Terms & Conditions
Terms & Conditions
Share
Installed on the rear of a lifted 4x4 Areostar solved the issue of when off roading and loaded up the over sized tires rubbing on bumps. Both rear wheels used 2 base units and three modular units each.
