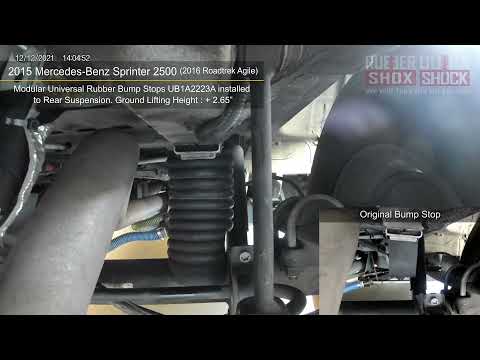

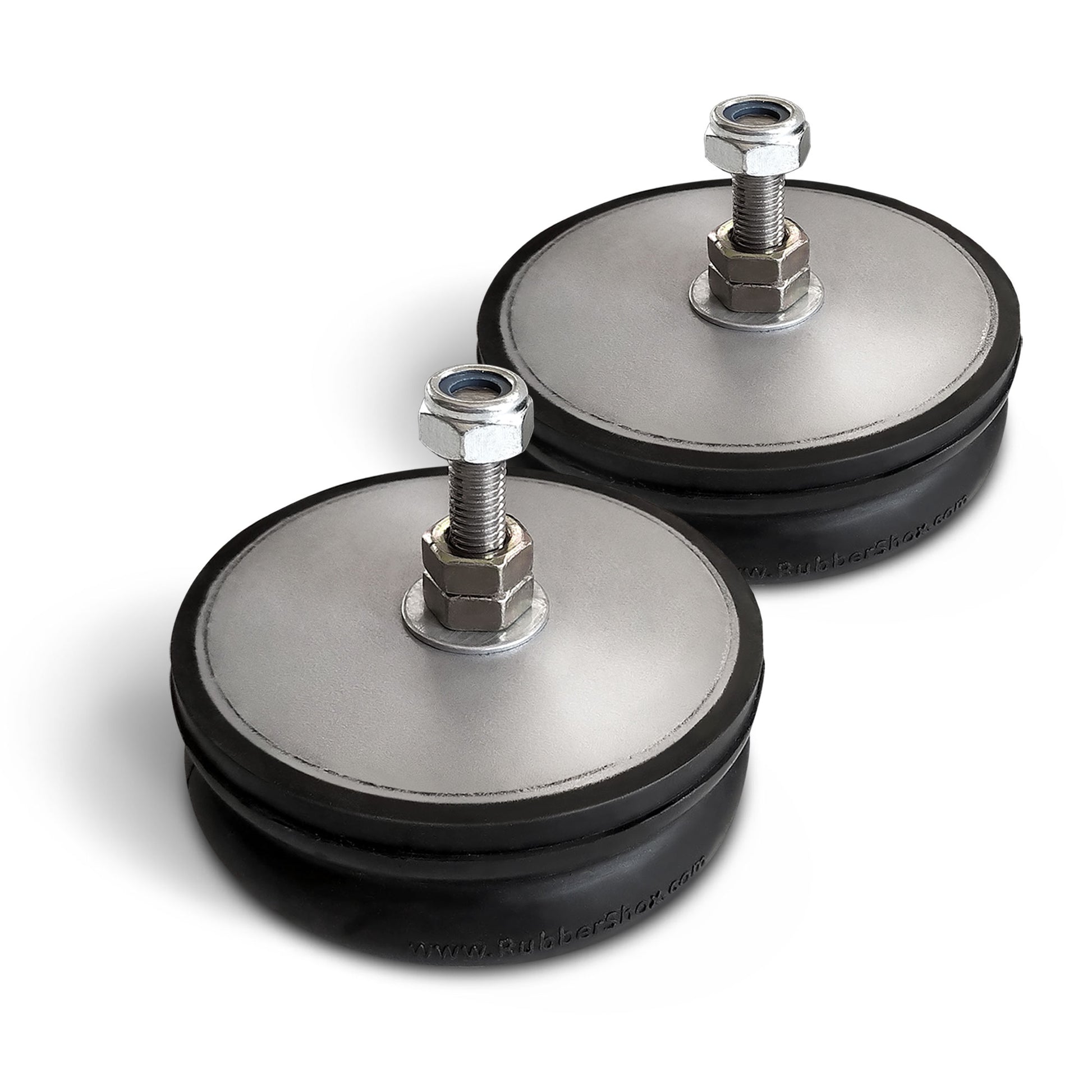

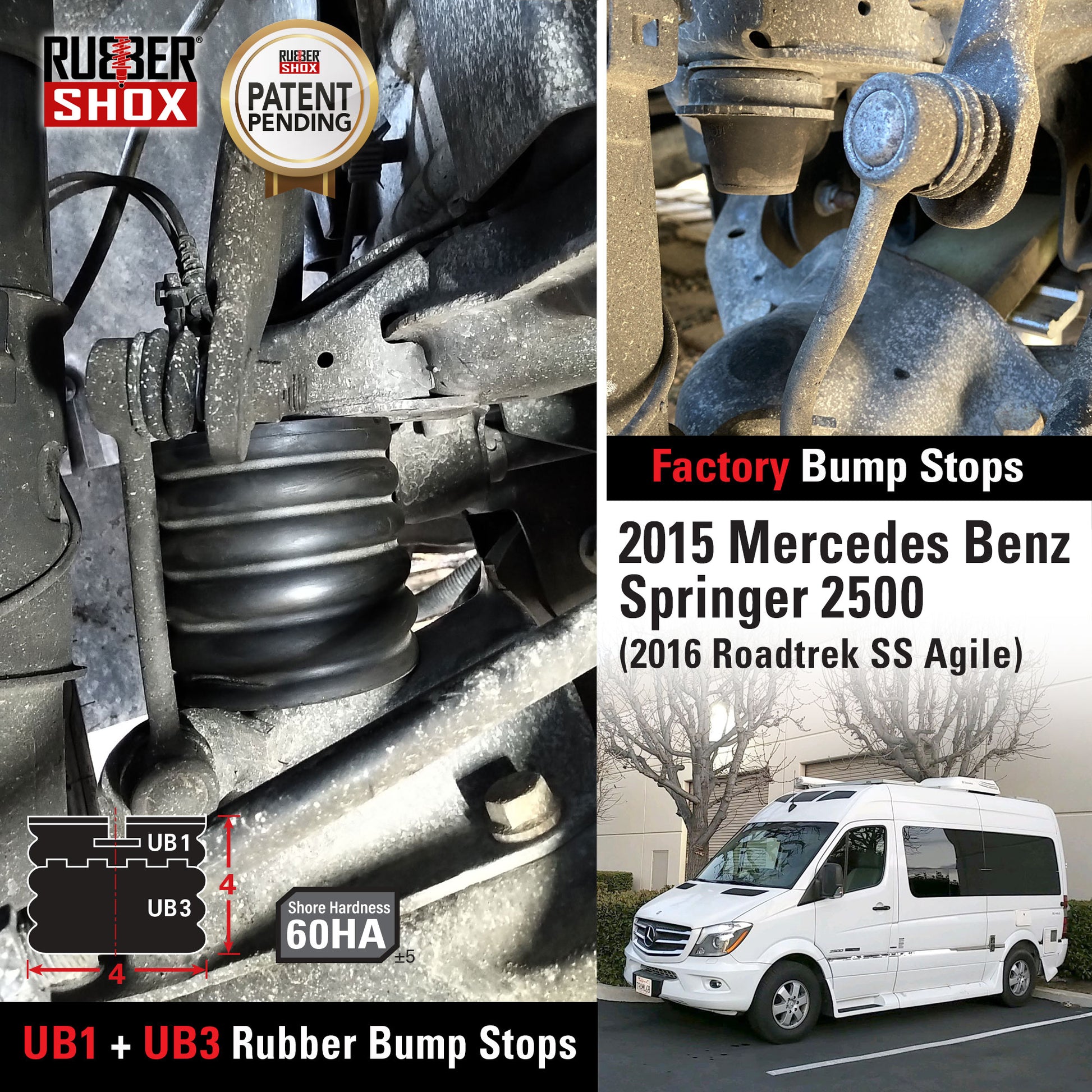

UB1 : The UB1 module is the base module for use with the RubberShox patented UB series of modular bump stops. UB1 is a universal replacement for the factory bump stop with a 60A firm, heavy duty, universal bump stop and should be used with other UB2/UB3 modules. For Mercedes-Benz Sprinter van bumpstops, see the UB1A module.

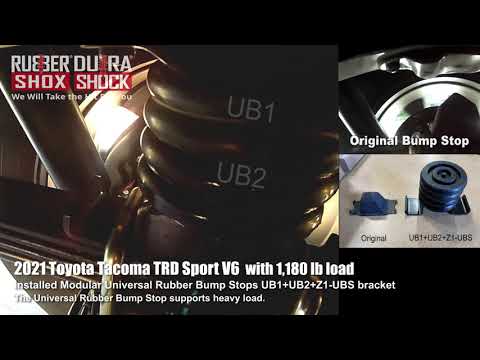

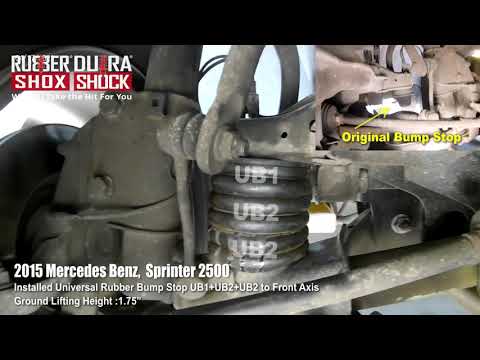

The RubberShox UB series is a patented, modular bump stop replacement solution. Combine the base UB1 module with one or more interlocking UB2 submodule(s) and a UB3 end module to customize the height of your bump stop.
UB1 is the base module of a patented, modular, universal rubber bump stop system. Required for use with other RubberShox Modular Bump Stops.

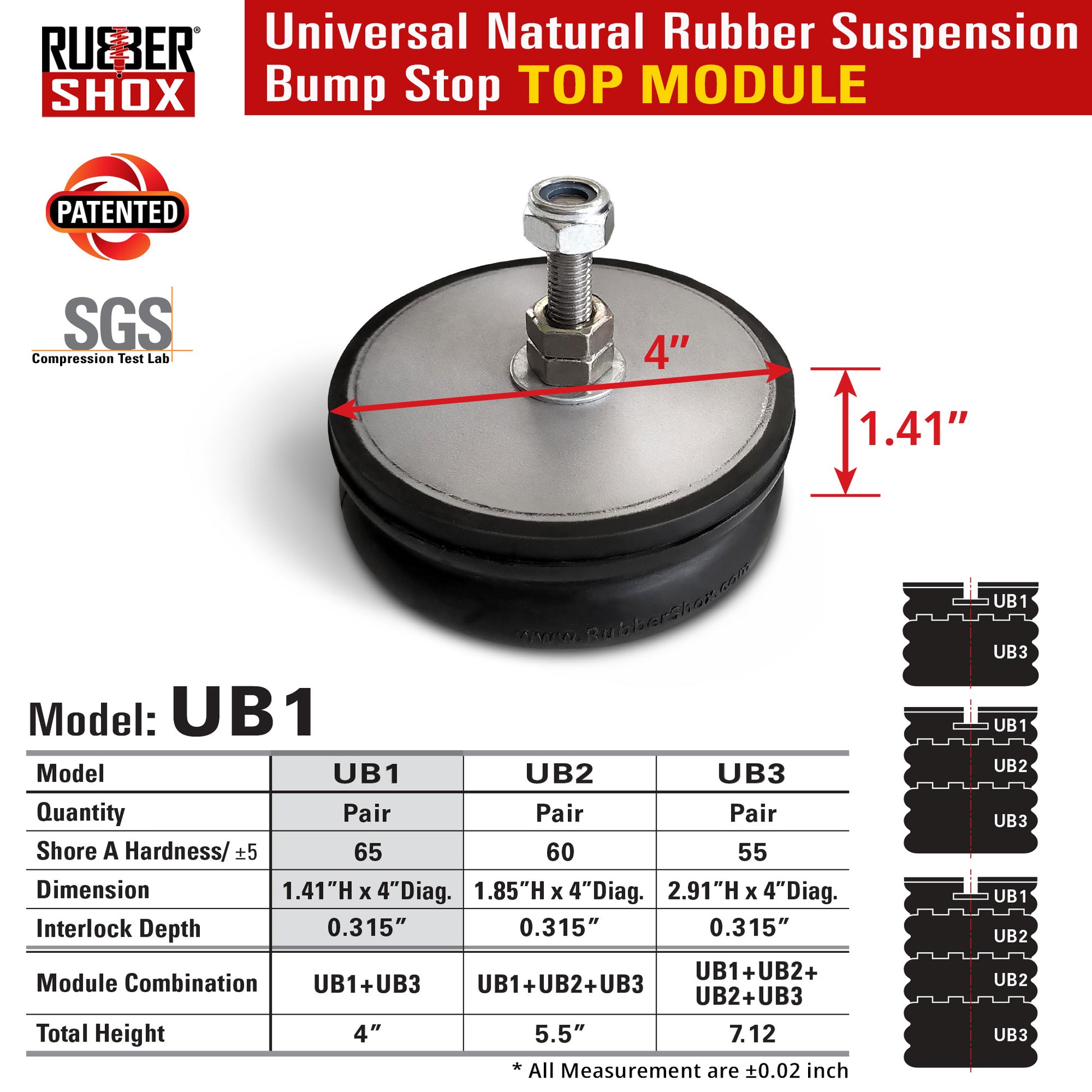

Dimensions: 1.4” height x 4” width. Combine with UB2 and/or UB3 modules to increase height. UB2 - 1.85”, UB3: 2.91”.
Heavy Duty: Each unit supports 2500 lbs, or 5000 lbs per axle. Hardness: 60A.
Disclaimer: These do not increase vehicle load capacity. Refer to your vehicle’s factory GVWR and payload rating before operation. Always follow applicable laws/regulations during operation and exercise discretion.
Specifications

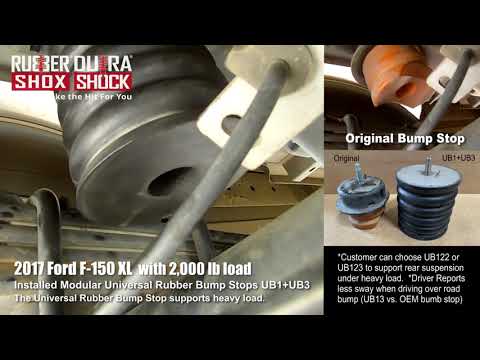

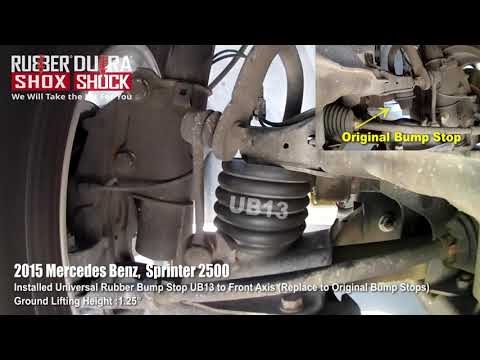

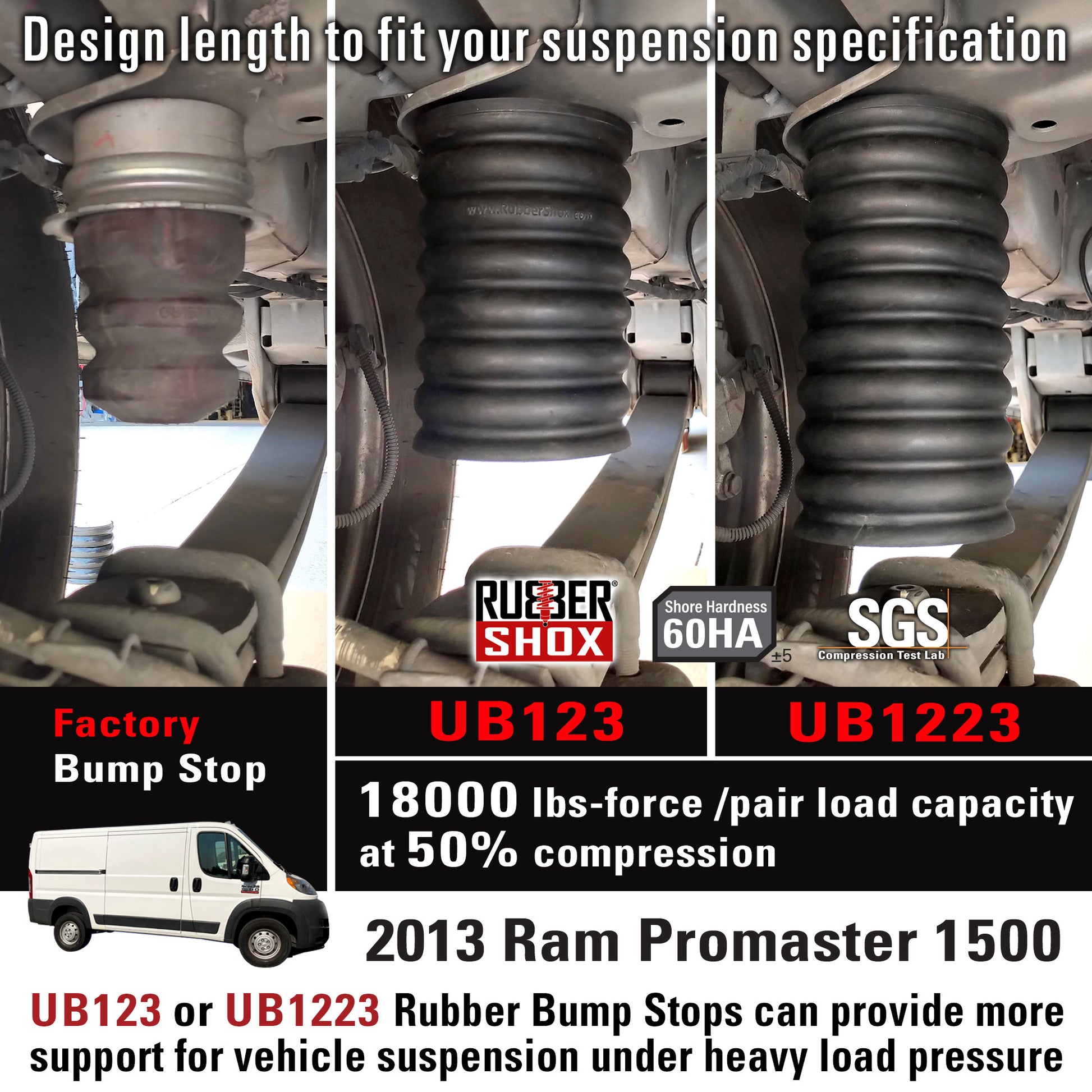

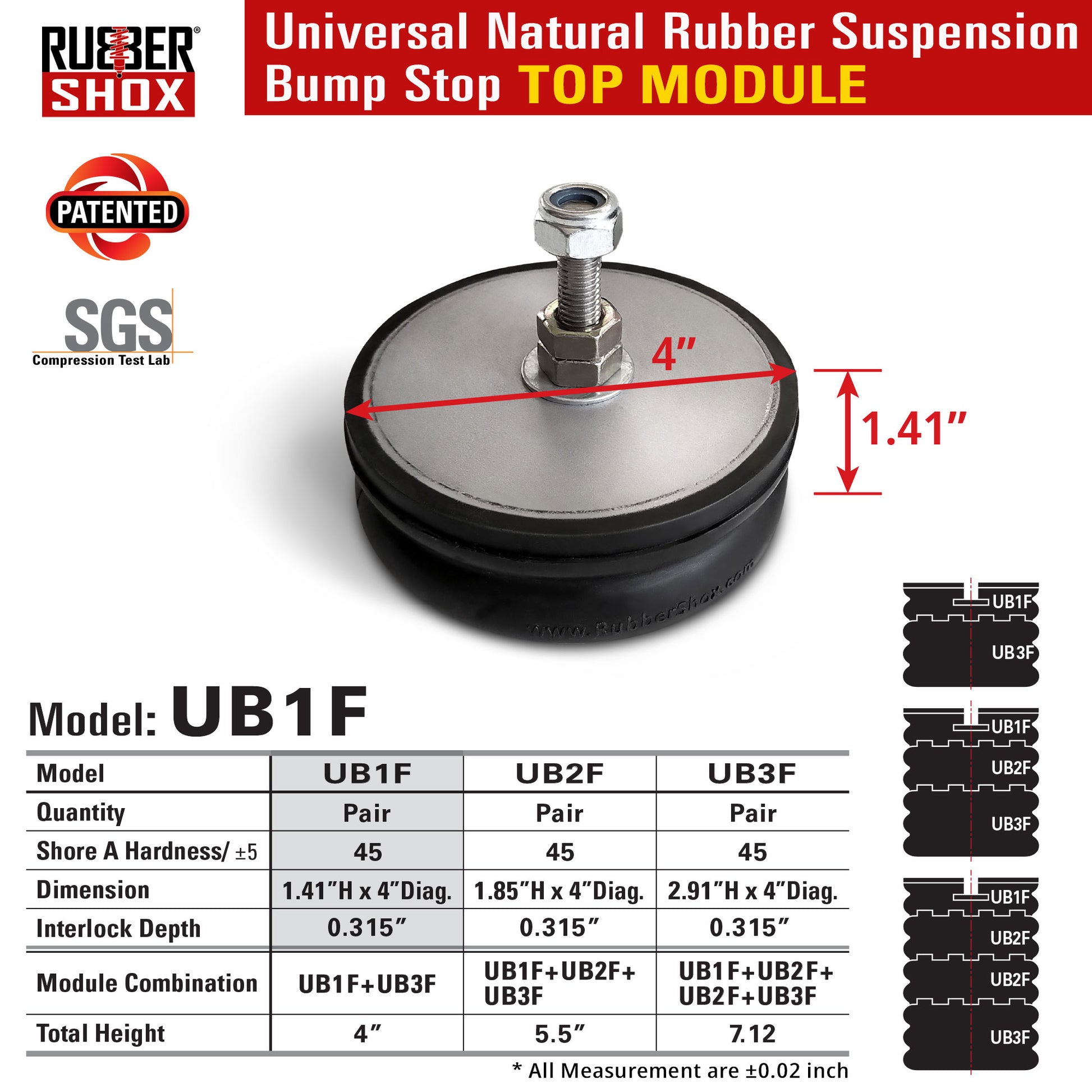

【Product Size & Load Weight】: UB1: 1.4"H x 4"D x 0.31" Groove Depth. Combine UB1+UB3= 4.04"H x 4"D(UB13). Combine UB1+UB2+UB3 =5.55"H x 4" D(UB123). Combine UB1+UB2+UB2 +UB3=7.12"H x 4"D(UB1223). 2500 / 5000lbs-force at 25% compression per pc/pair.
【Package Contents and US Based Company】: Package of rear bump stops includes UB3 x3pcs and rubber glue. RubberShox bump stop patent pending US design and support. In stock with lifetime technical assistance.
【Durable Natural Rubber Bump Stops with Customizable Heights】: Our rubber bump stop is made of Maintenance-Free & Longevity Durable Natural Rubber, which is sustainable and resistant to rupture, abrasion, oil, salt, gravel, UV radiation and high temperature. Combine Top Module UB1 with Sub-Module UB2 and/or UB3 to your various suspension height.

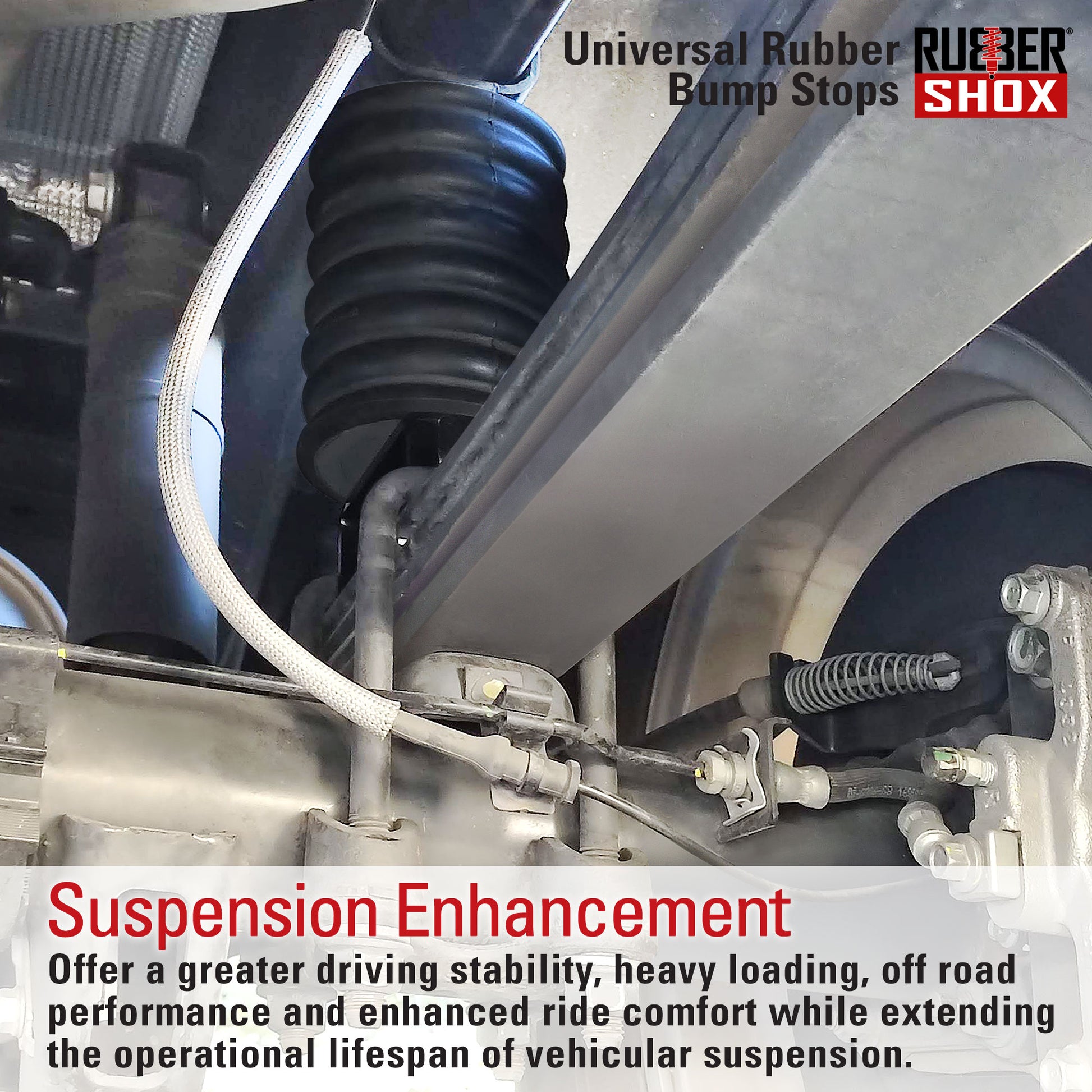

【Suspension Enhancement】: Bump stops on your vehicle's suspension help support heavy loads, maintain alignment, and improve stability while driving or towing. By connecting the frame with the leaf spring, they reduce bouncing and sway for a smoother ride.

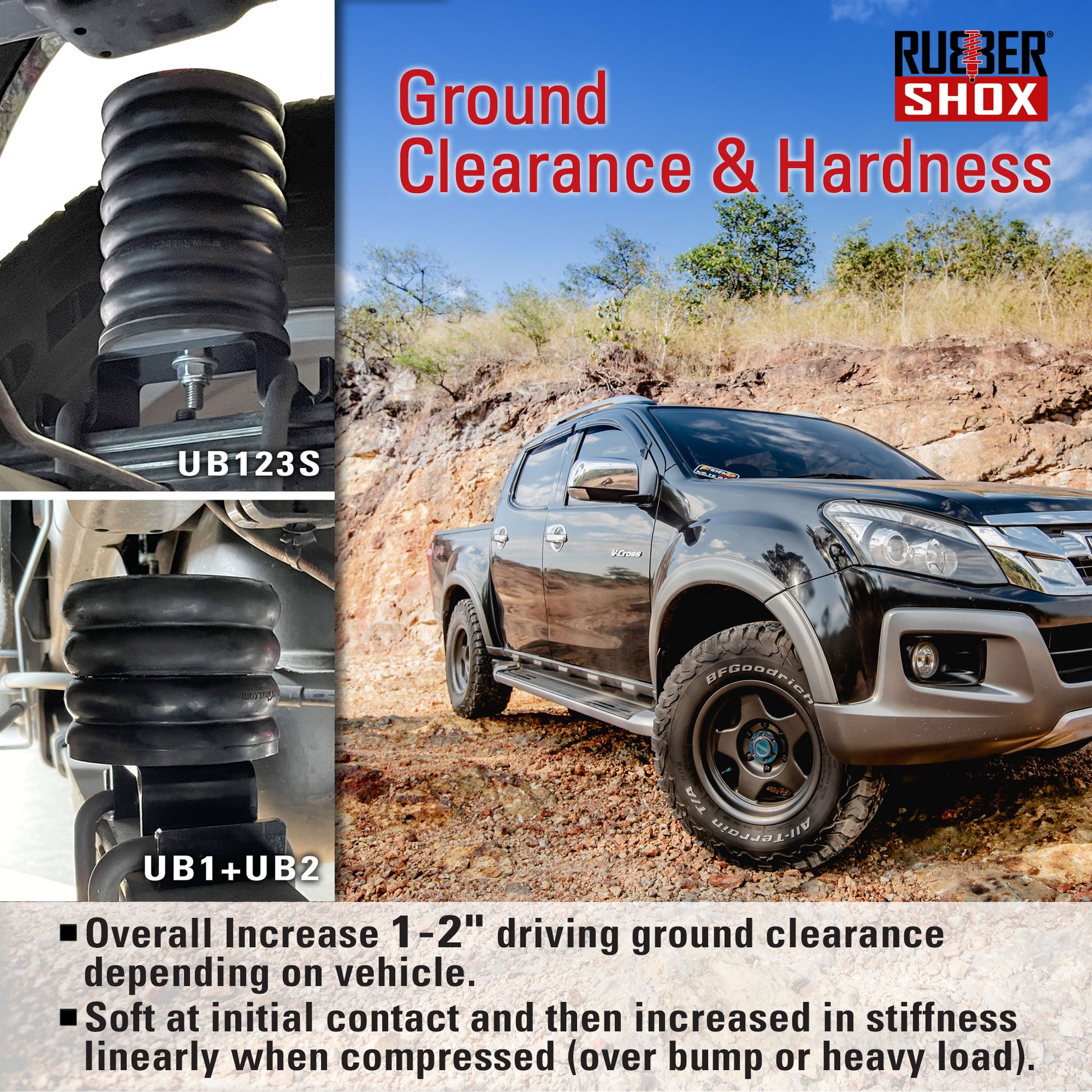

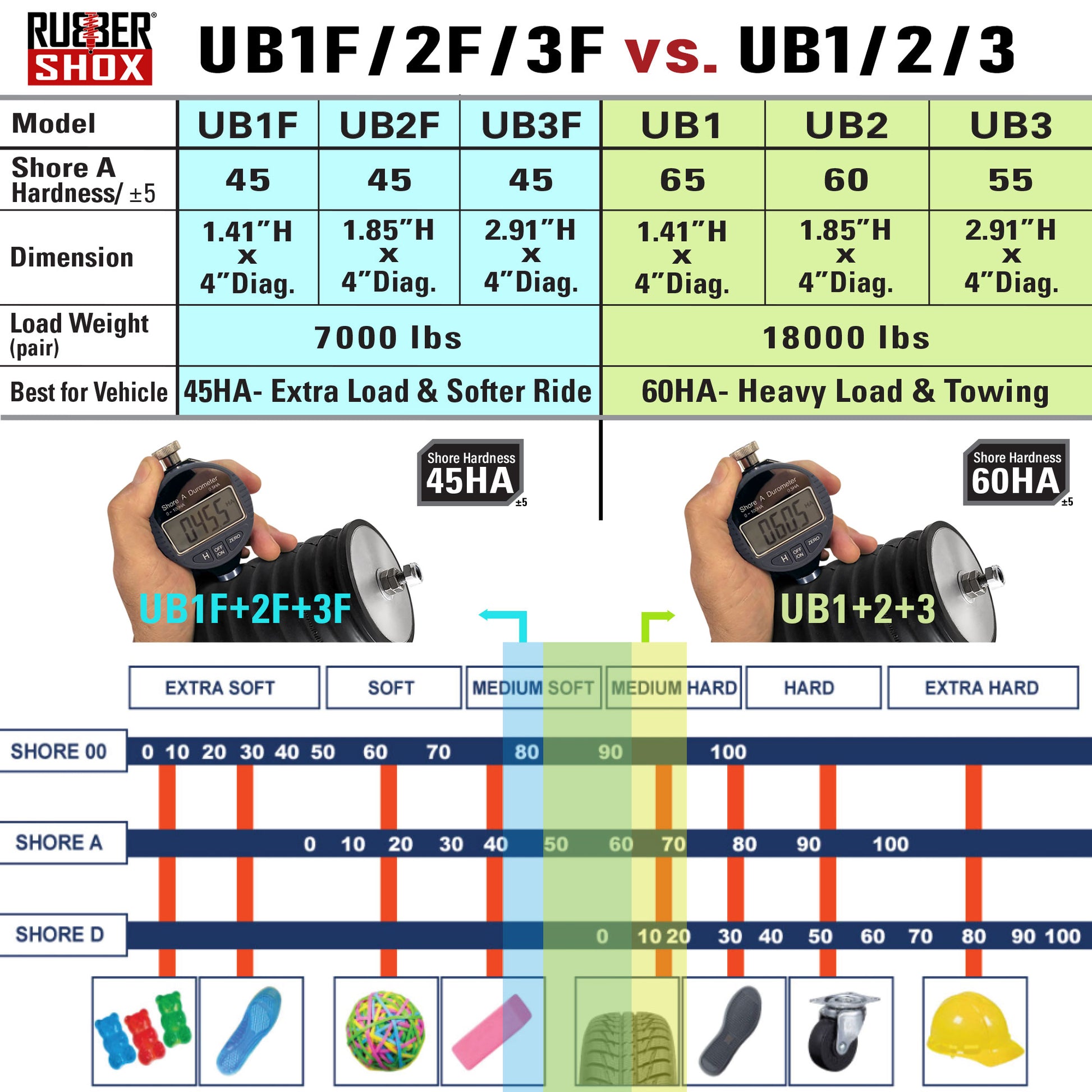

【Hardness】: 60 Shore A hardness. Soft at initial contact and then increase in stiffness linearly when compress (over bump or heavy load).
