UB series Heavy-Duty Single-Piece Ford F-150/F-250 Bump Stop

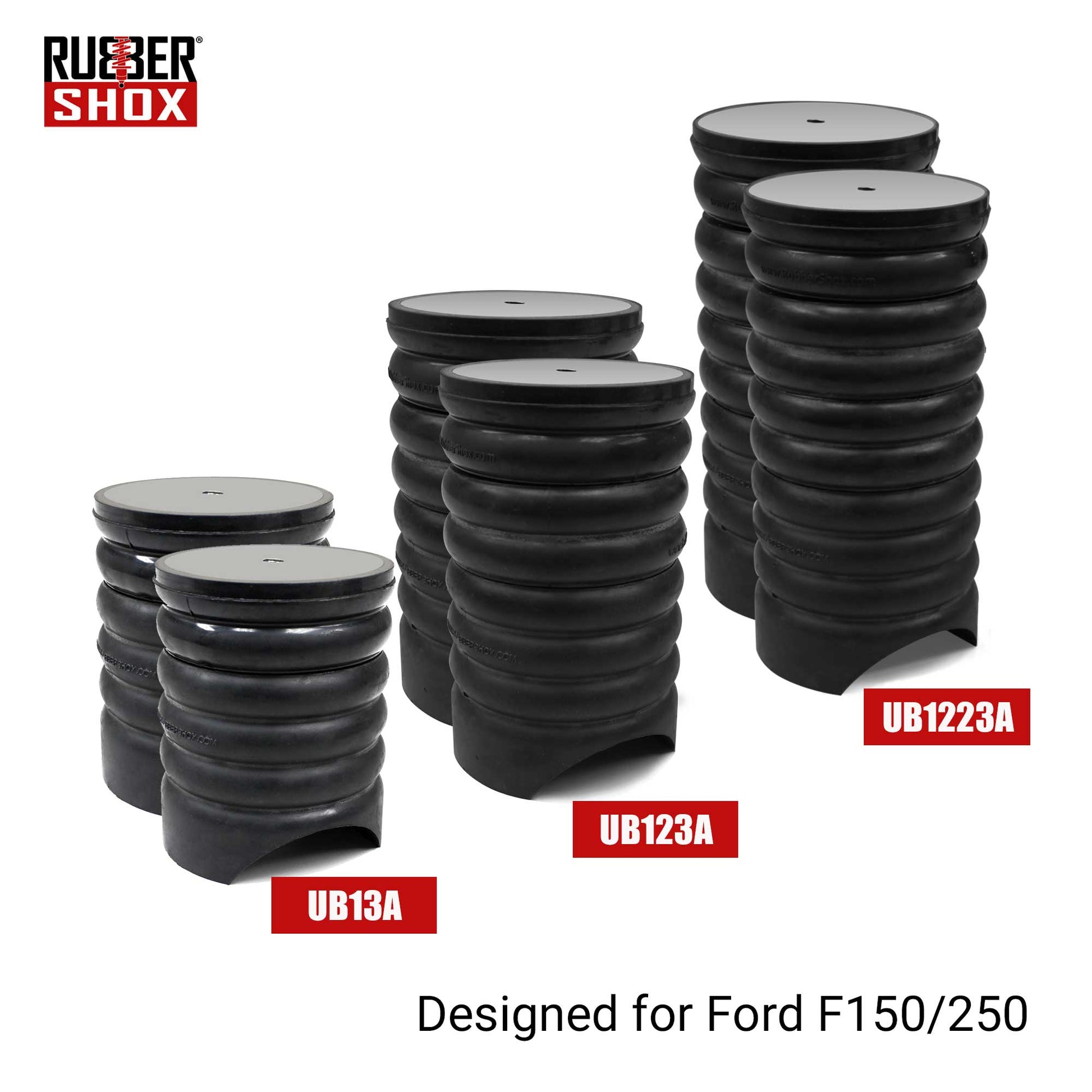

The RubberShox UB13A/UB123A/UB1223A series Bump Stops are heavy duty, single piece replacements for Ford F-150/F-250 factory bump stops. While OEM bump stops are typically small and insufficient for larger loads, UB series bump stops are thicker, longer, and firmer at 60A hardness. Choose from a height of 4”, 5.5”, or 7”. For universal fitment with other vehicles, see UB13/UB123/UB1223 bump stops

Disclaimer: RubberShox Bump Stop products DO NOT increase vehicle load capacity. They are designed to equalize loads, support OE suspension for more stability and increase ground clearance. Please refer to your vehicle’s owner’s manual for maximum load capacity for safe operation.

Features

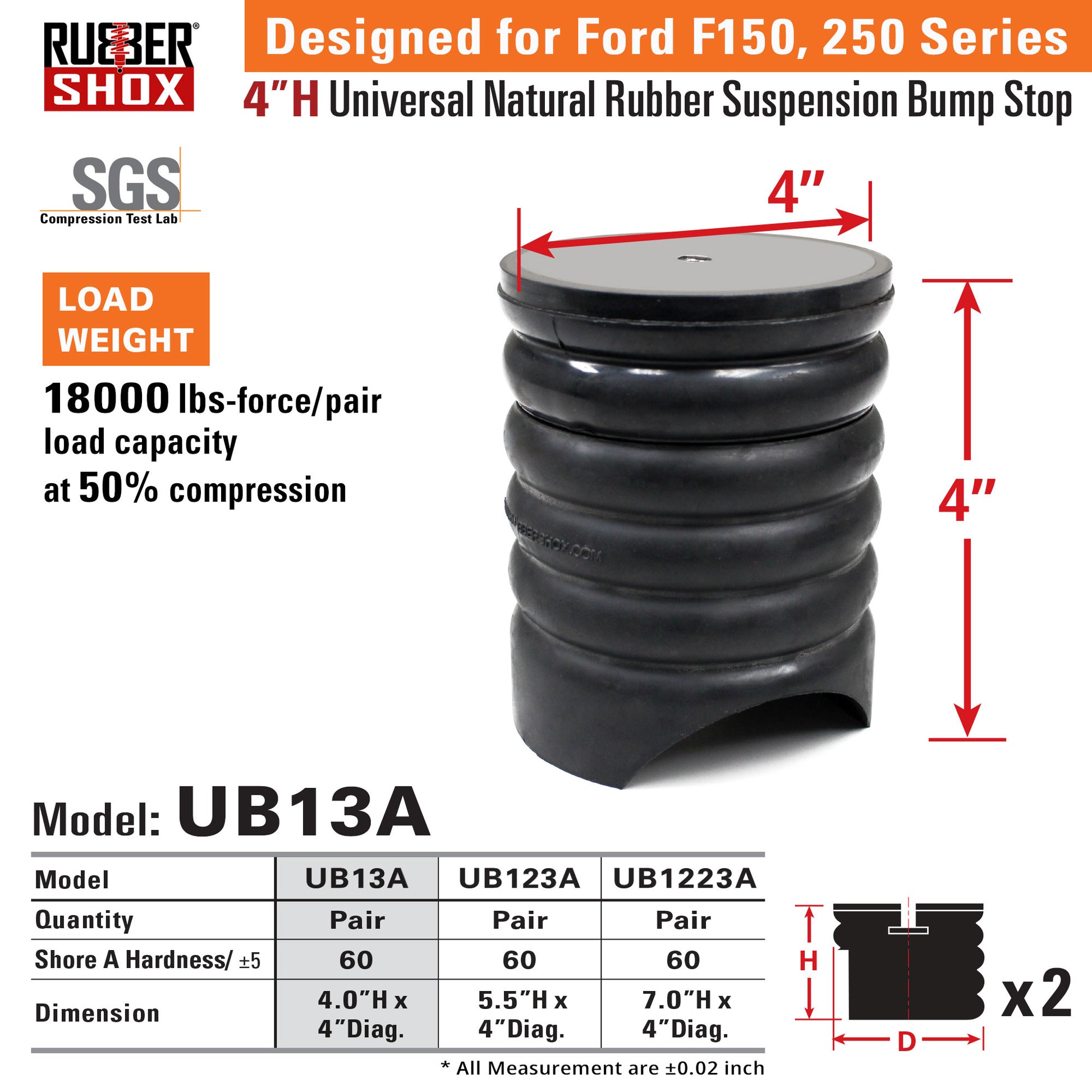

UB13A

• RubberShox's UB13A is a heavy duty, single piece, rubber bump stop replacement for the Ford F150/F250 insufficient factory bump stops.

• Dimensions: 4” Height x 4” Width. See other variations for different size bump stops.

• High-Quality Construction: Engineered to ensure long-lasting shock absorption exceeding the capabilities of the factory bump stops. Natural rubber is naturally resistant to UV, salt, dust, water, and prevents further damage to the chassis.

• Heavy Duty: Each unit supports 4500 lbs, or 9000 lbs per axle.

• Disclaimer: These do not increase vehicle load capacity. Refer to your vehicle’s factory GVWR and payload rating before operation. Always follow applicable laws/regulations during operation and exercise discretion.

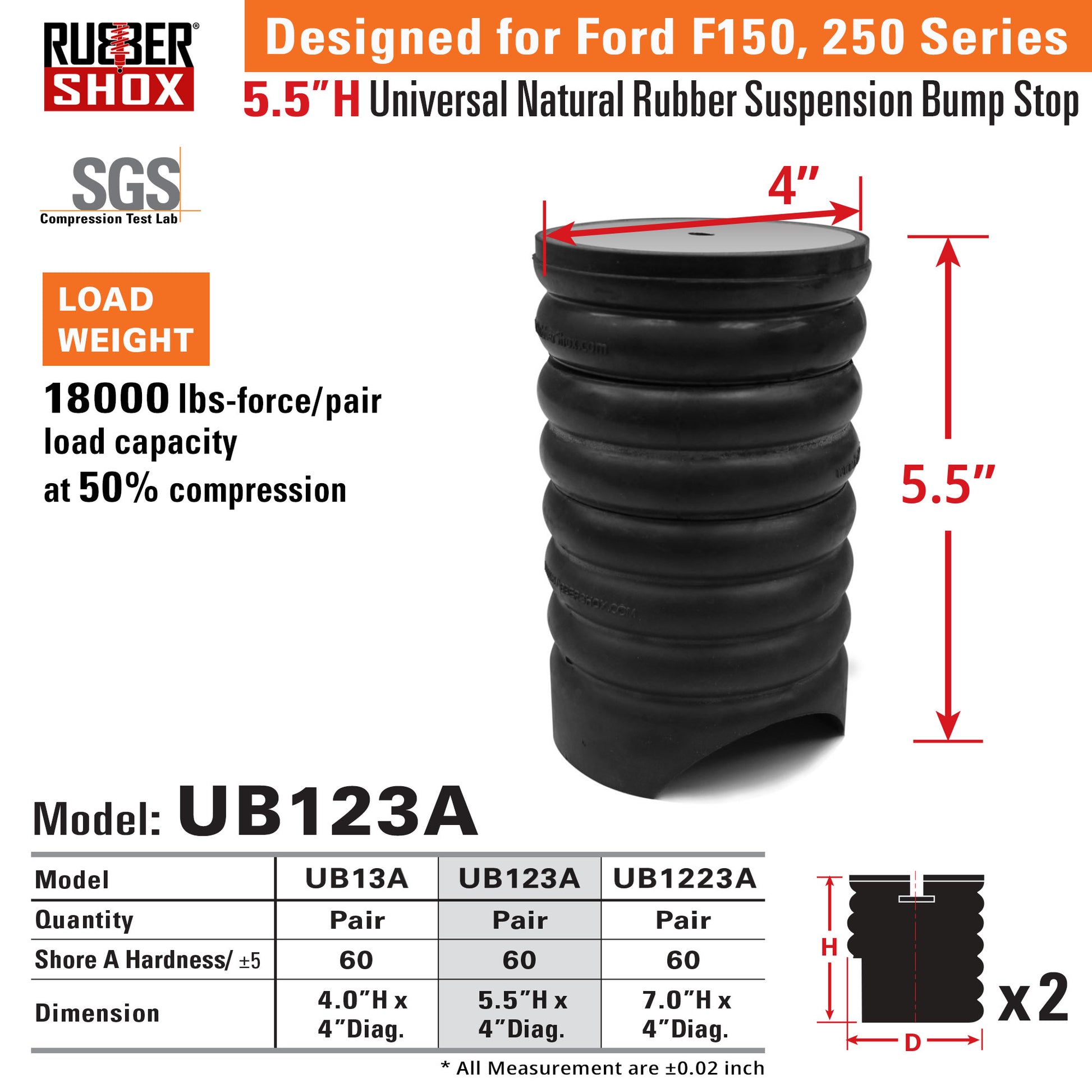

UB123A

• RubberShox's UB123A is a heavy duty, single piece, rubber bump stop replacement for the Ford F150/F250 insufficient factory bump stops.

• Dimensions: 5.5” Height x 4” Width. See other variations for different size bump stops.

• High-Quality Construction: Engineered to ensure long-lasting shock absorption exceeding the capabilities of the factory bump stops. Natural rubber is naturally resistant to UV, salt, dust, water, and prevents further damage to the chassis.

• Heavy Duty: Each unit supports 4500 lbs, or 9000 lbs per axle.

• Disclaimer: These do not increase vehicle load capacity. Refer to your vehicle’s factory GVWR and payload rating before operation. Always follow applicable laws/regulations during operation and exercise discretion.

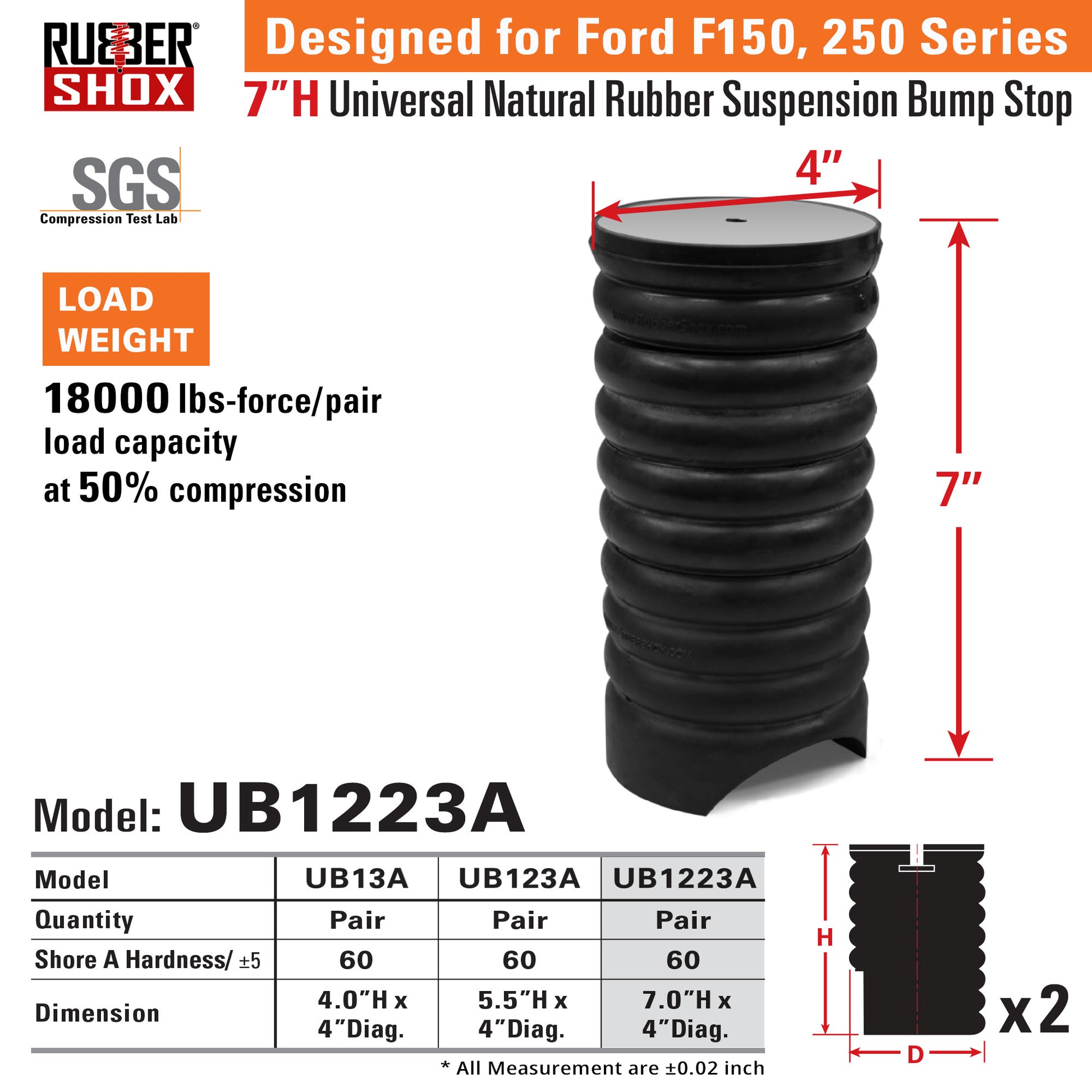

UB1223A

• RubberShox's UB1223A is a heavy duty, single piece, rubber bump stop replacement for the Ford F150/F250 insufficient factory bump stops.

• Dimensions: 7” Height x 4” Width. See other variations for different size bump stops.

• High-Quality Construction: Engineered to ensure long-lasting shock absorption exceeding the capabilities of the factory bump stops. Natural rubber is naturally resistant to UV, salt, dust, water, and prevents further damage to the chassis.

• Heavy Duty: Each unit supports 4500 lbs, or 9000 lbs per axle.

• Disclaimer: These do not increase vehicle load capacity. Refer to your vehicle’s factory GVWR and payload rating before operation. Always follow applicable laws/regulations during operation and exercise discretion.


Downloads

Universal Rubber Bump Stop

Installation Manuals

• Modular/ Universal Rubber Bump Stop Installation Manual
• Universal Rubber Bump Stop Installation Manual (for Ford F150/250 Series)

Dimensions Tables

• Universal Rubber Bump Stop Dimension Table
• Universal Rubber Bump Stop Dimension Table (Designed for Ford F150, 250/ Mercedes-Benz Sprinter)

Technical Reports

• Universal Modular Bump Stop Technical Report – All
• Universal Bump Stop Technical Report – UB13A
• Universal Bump Stop Technical Report – UB123A
• Universal Bump Stop Technical Report – UB1223A
• Universal Bump Stop Technical Report – UB12223A

Others

• Picking the right bump stop
• Rubbershox Product Line
